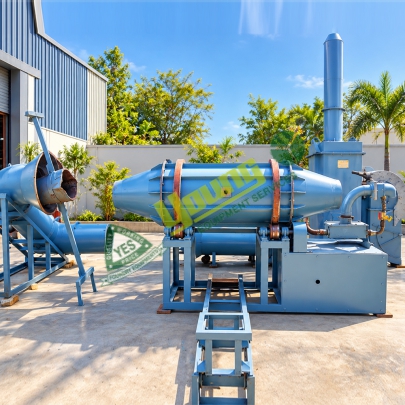

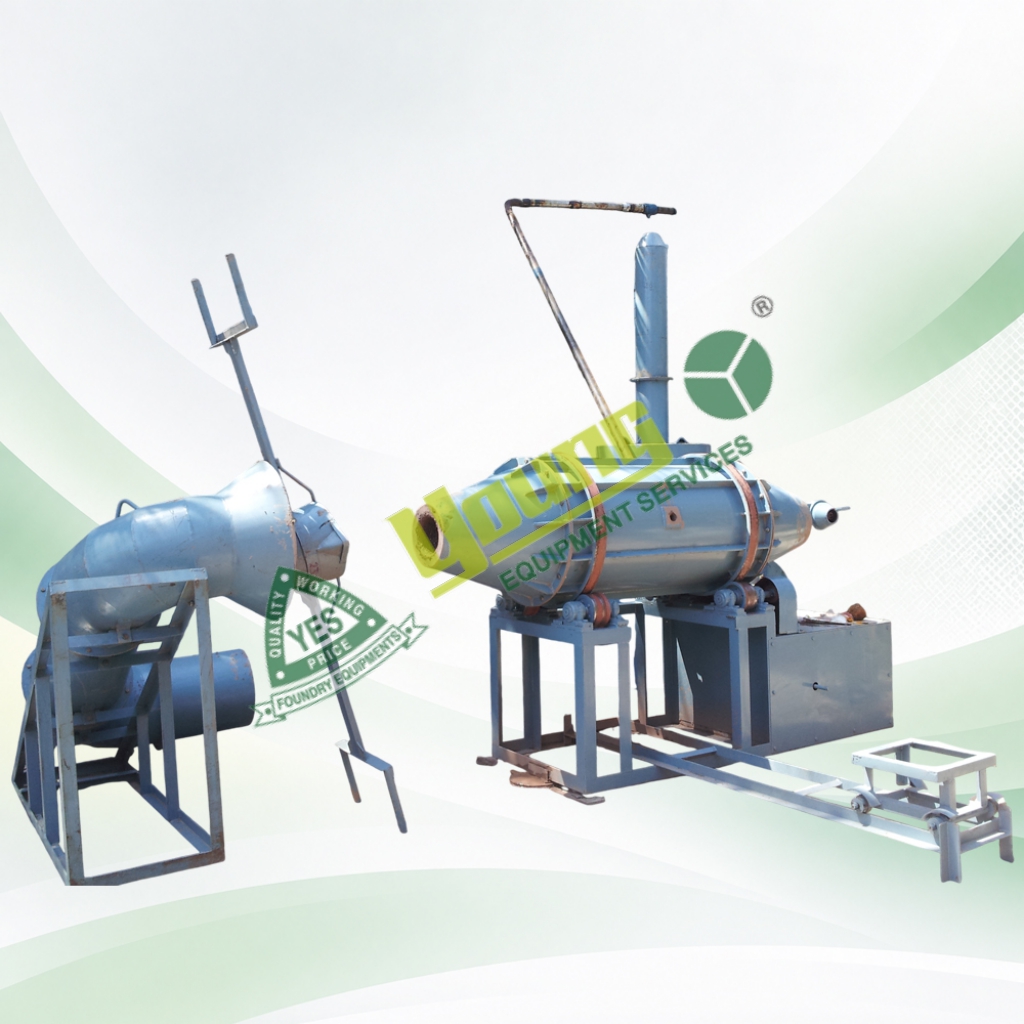

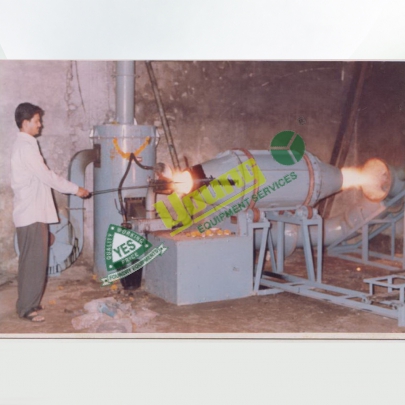

"YOUNG" offers an efficient & ideal new design unit for high temp. And low fuel cost for melting C.I.. Alloy. Ferrous & Non. Ferrous metals. Simplicity of operation & high thermal efficiency. The shellis fabricated robustly from M.S. Plates and remaining other parts from heavy gauge sheets. The center portion is cylindrical & the ends are conical. Two M.S. Tyres are provided on the shell rotation. The base frame structure is robustly fabricated for continuous heavy & hard use. The drive support and guide rollers are of cast iron. The roller shafts are mounted on heavy duty bearings coupled pedestals.
"YOUNG" offers an efficient & ideal new design unit for high temp. And low fuel cost for melting C.I.. Alloy. Ferrous & Non. Ferrous metals. Simplicity of operation & high thermal efficiency. The shellis fabricated robustly from M.S. Plates and remaining other parts from heavy gauge sheets. The center portion is cylindrical & the ends are conical. Two M.S. Tyres are provided on the shell rotation. The base frame structure is robustly fabricated for continuous heavy & hard use. The drive support and guide rollers are of cast iron. The roller shafts are mounted on heavy duty bearings coupled pedestals. The Burning system consists of a high capacity & efficient Burner. An efficient new design steel tube Recuperate and burner is used to preheat the air more. Result in fuel saving & also ensures quicker melts.
Rapid Melting, Intimate Mixing, Flexibility of production, Lower Melting Cost. REFRACTORY, ELECTRIC & PIPE FITTING ARE NOT SUPPLY WITH FURNACE. ON COMPLETION OF ERECTION GIVING A COMPLETE SATISFACTORY TRIAL.
The Furnace is supplied complete with following units...
| Melting Capacity (Approx.) |
Melting Time (Approx.) |
Heating Time (Minutes) |
H.P. of Ele. Motor Shell H.P. |
Blower H.P. |
Ground Area Required L × W |
|---|---|---|---|---|---|
| 50 KG | 16 | 10 | 0.5 | 3.0 | 15' × 12' |
| 100 KG | 20 | 10 | 1.0 | 5.0 | 18' × 12' |
| 150 KG | 25 | 15 | 1.0 | 5.0 | 18' × 12' |
| 250 KG | 35 | 15 | 1.0 | 7.5 | 22' × 15' |
| 500 KG | 55 | 15 | 2.0 | 10.0 | 25' × 15' |
| 750 KG | 70 | 15 | 2.0 | 12.5 | 25' × 18' |
| 1000 KG | 90 | 20 | 3.0 | 15.0 | 30' × 20' |
| 2000 KG | 120 | 25 | 5.0 | 20.0 | 36' × 25' |
