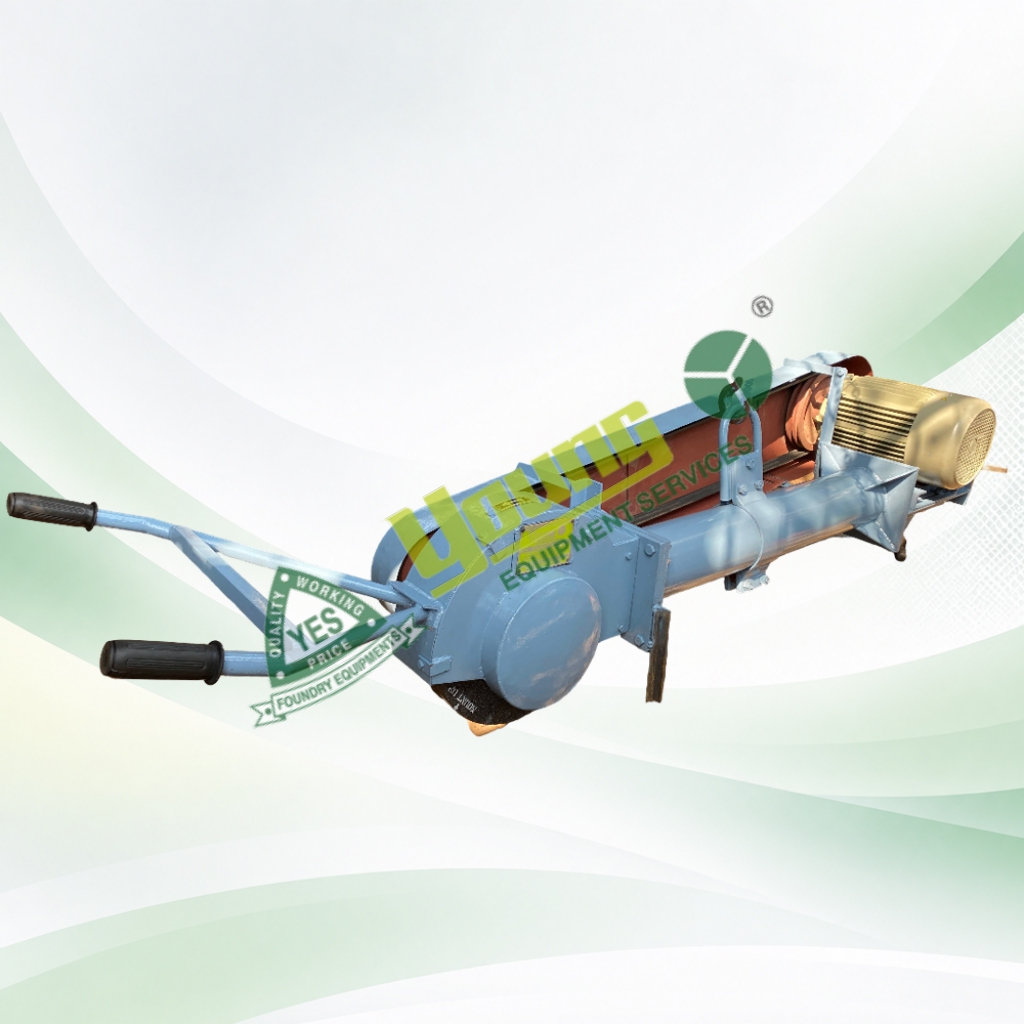

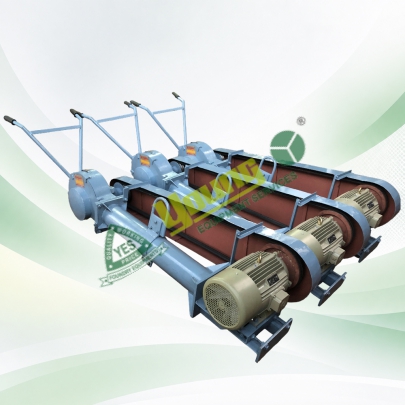

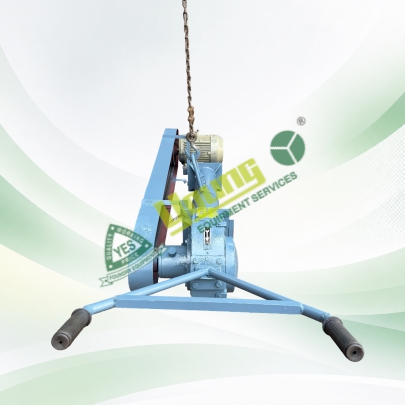

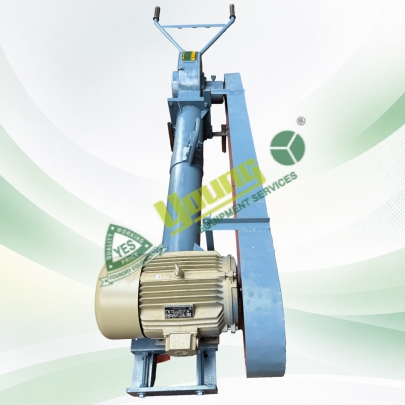

If casting jobs can't go to grinder, the Grinder must go to castings, through " YOUNG" If casting, billets, ingots & jobs are too heavy to carry to your grinder, you have to go to get a Swing Frame Grinder that can grid your jobs. "YOUNG" manufacture a range of Grinders for Foundry and Steel Plant. The main body is constructed from heavy, seamless pipe. The main heavy Plated Wheel Housing is mounted on front side and Ele. Motor is on rear side of pipe on fabricated structure/ the Bearing Housing, V-Belt & Belt guard are provided on one side of machine. Right & Heavy duty bearing increase the life of machine & consume less power. The belt tightening provision is made at the motor end. The Grinder is precisely made to make the machine vibration free. The complete machine is balanced and suspended by chain.
If casting jobs can't go to grinder, the Grinder must go to castings, through " YOUNG" If casting, billets, ingots & jobs are too heavy to carry to your grinder, you have to go to get a Swing Frame Grinder that can grid your jobs. "YOUNG" manufacture a range of Grinders for Foundry and Steel Plant. The main body is constructed from heavy, seamless pipe. The main heavy Plated Wheel Housing is mounted on front side and Ele. Motor is on rear side of pipe on fabricated structure/ the Bearing Housing, V-Belt & Belt guard are provided on one side of machine. Right & Heavy duty bearing increase the life of machine & consume less power. The belt tightening provision is made at the motor end. The Grinder is precisely made to make the machine vibration free. The complete machine is balanced and suspended by chain.
IDEAL SOLUTION FOR HEAVY AND UNTRANSPORTABLE CASTING & JOBS.
| Grinding Wheel Dia. × Wid. × Bore |
300 × 40 × 25.4 mm. |
400 × 65 × 152.4 mm. |
500 × 75 × 203.2 mm. |
600 × 100 × 300 mm. |
|---|---|---|---|---|
| Grinding Wheel R.P.M. | 2200 | 2100 | 1730 | 1500 |
| Ele. Motor H.P. | 5 H.P. | 7.5 H.P. | 10 H.P. | 15 H.P. |
| Heavy Type | 7.5 H.P. | 10 H.P. | 15 H.P. | 20 H.P. |
| Centre Distance Motor & Wheel |
900 mm. | 1400 mm. | 1700 mm. | 2000 mm. |
| Weight Kg. (Approx.) | 100 Kg. | 200 Kg. | 300 Kg. | 500 Kg. |
